    U Shape 50000kg Semi Tipper Trailer With HYVA Lifting System

    Ask Lasest Price
    Brand Name : TRUCKMAN AUTO
    Model Number : TKNS28834
    Certification : SGS, BV, CIQ, FORM M
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Unit / Per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

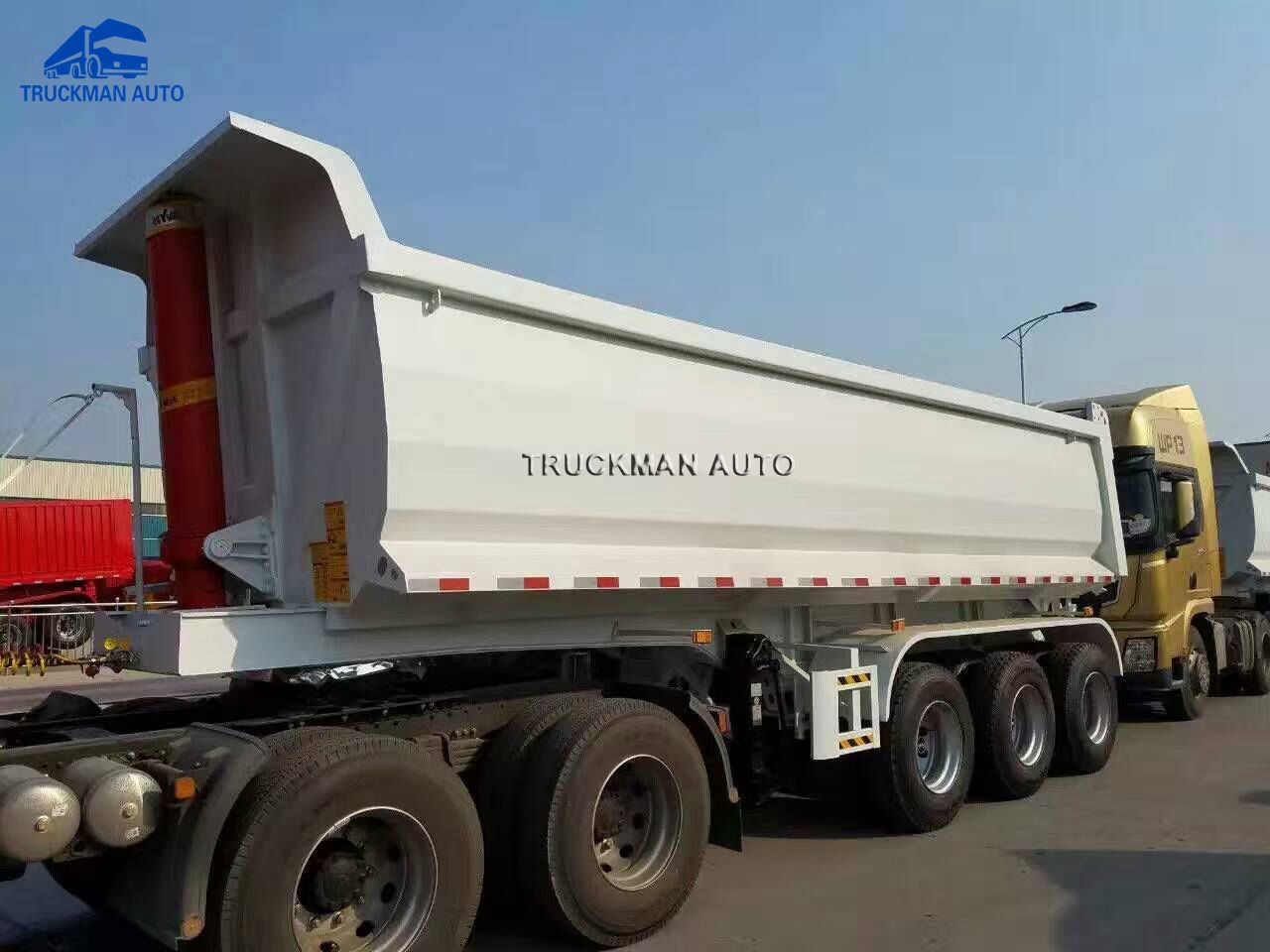

    U Shape 50000kg Semi Tipper Trailer With HYVA Lifting System

    -1. U Shape 50 Tons Tipper Trailer Main Detail.


    The U shape 50 tons Tipper Trailer is very popular for the mining and construction filed. the material choose the Q345, with high abrasion resistance. The 50 tons Tipper Trailer tire have the radial and tubeless model could optional, meet the different road request, for example: good road transport suggest the tubeless tire, otherwise the radial model tire is very necessary.


    U Shape 50000kg Semi Tipper Trailer With HYVA Lifting System


    -2. U Shape 50 Tons Tipper Trailer Main Specification.


    DescriptionParameter value
    Product NameU shape 50 tons Tipper Trailer
    Loading Weight50,000kg
    Tare Weight13,000kg
    Axle3 axle, 3x13 tons
    SuspensionAmerica type, 8mm thickness
    Leaf Spring120x16mmx10pcsx6sets
    Rim16mm thickness
    Tire12.00R20 or 315/80R22.5, 12 pcs
    Brake SystemWABCO brand, ABS and 6 pcs brake chamber
    Thickness Of Frame

    Upper plate 16mm, middle 8mm,

    lower plate 18mm, “I” type main beam

    MaterialQ345, high strength steel
    Cargo Box10000x2300x1500mm, bottom 8mm, side 6mm, U shape
    Dimension11000x2500x3750mm

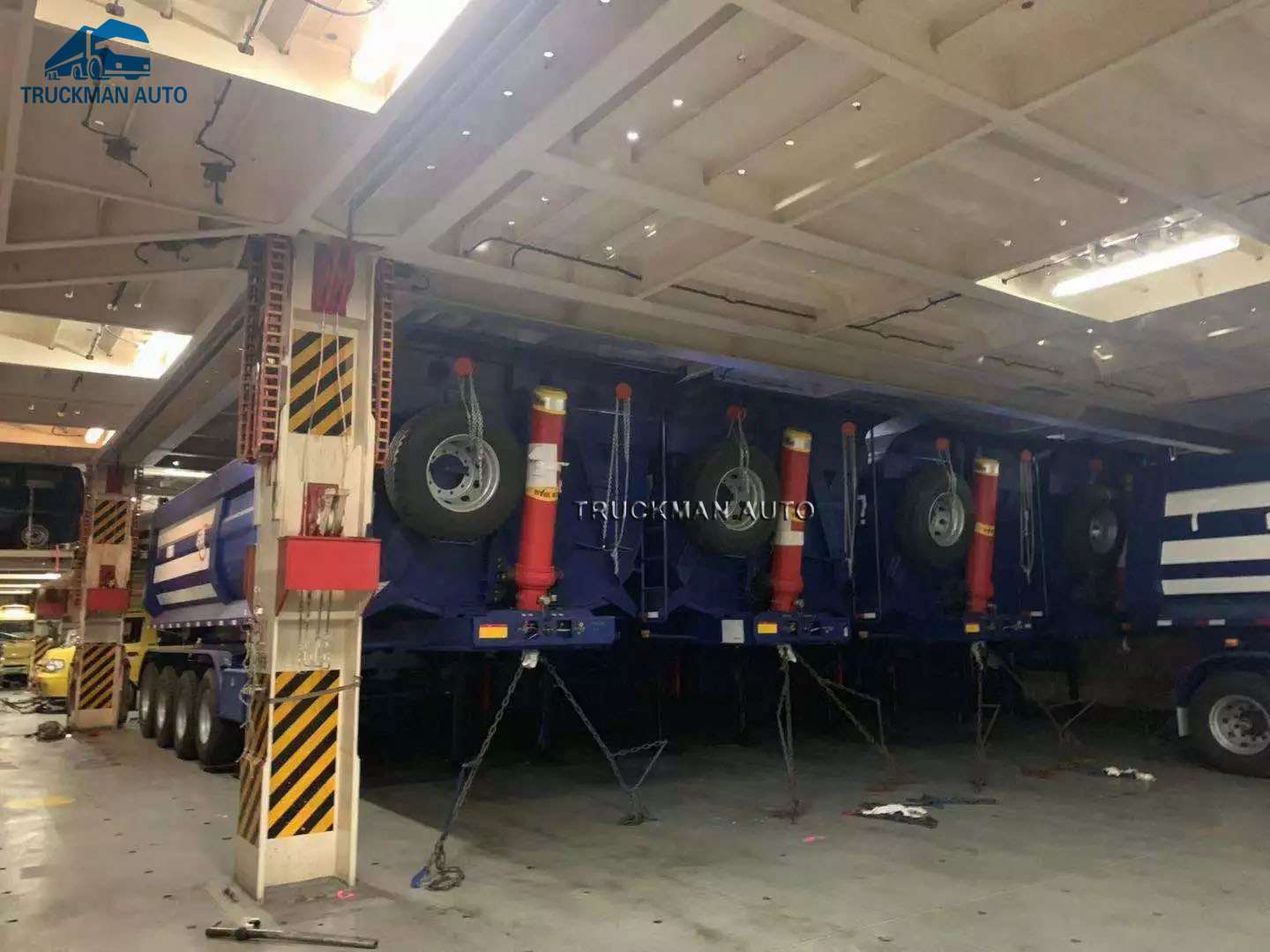

    -3. U Shape 50 Tons Tipper Trailer Shipment Picture.



    The U shape 50 tons Tipper Trailer could shipment via the container, bulk cargo and roro vessel. We could

    choose the suitable vessel according to your request.
