    1190mm XCMG LW500KN 5 Ton Front End Wheel Loader

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : LW500KN
    Certification : SGS, BV, CIQ
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Unit / Per Month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    1190mm XCMG LW500KN 5 Ton Front End Wheel Loader

    XCMG LW500KN 5 Ton Front End Wheel Loader


    -1. XCMG 5 Ton Wheel Loader Information.


    XCMG 5 ton wheel loader popular model is ZL50GN, LW500FN, LW500KN etc. LW500KN is upgrade model for LW500FN, the main advantage is heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.


    1190mm XCMG LW500KN 5 Ton Front End Wheel Loader


    DescriptionUnitLW500KN
    Rated operating loadkg5000
    Bucket capacity2.7~4.5
    Machine weightkg17200
    Dump clearance at maximum liftmm3150~3560
    Reach at maximum liftmm1100~1190
    Wheel basemm3300
    Treadmm2250
    Height of hinge at maximum lift heightmm4112
    Working height(fully lifted)mm5407
    Max.breakout forcekN170
    Hydraulic cycle time-raises≤6.5 s
    Total hydraulic cycle times≤11 s
    Min. turning radius over tyresmm5925 mm
    Articulation angle°30 º
    Gradeability°45 º
    Tyre size23.5-25-16PR
    Overall machine dimension L×W×Hmm8870*3000*3350
    ModelWD10G220E21
    Rated PowerkW162

    -2. XCMG 5 Ton Wheel Loader Main Advantage.


    1190mm XCMG LW500KN 5 Ton Front End Wheel Loader

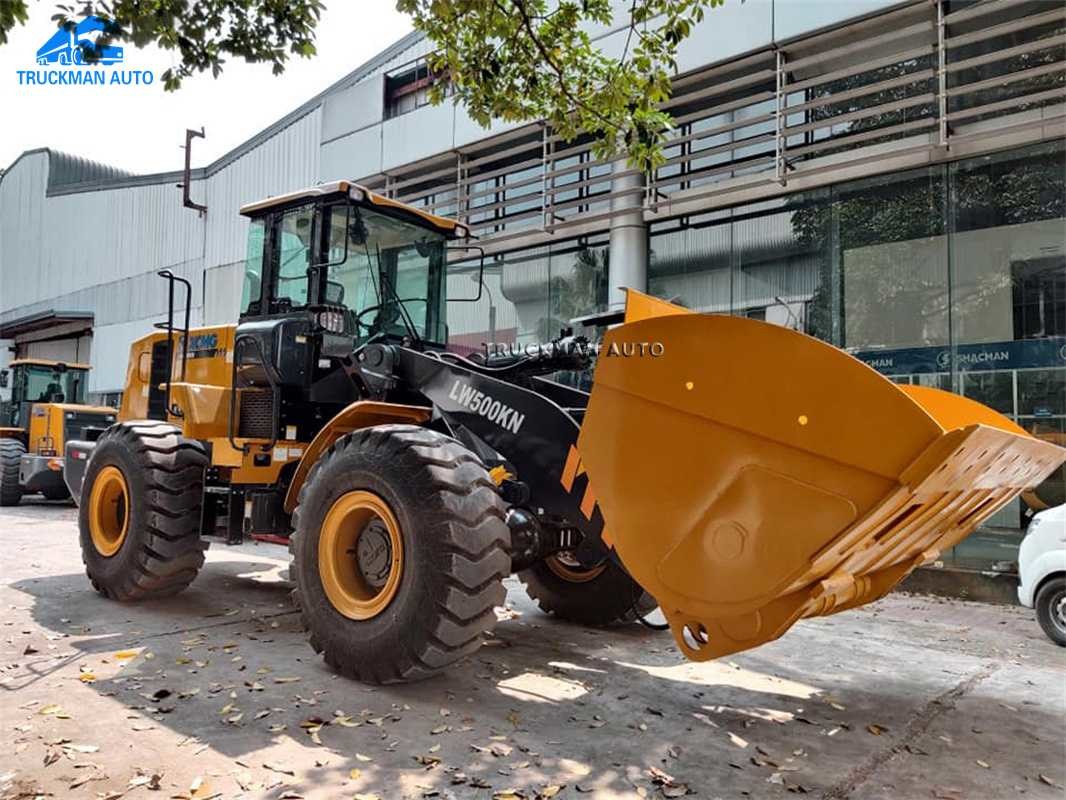

    The LW500KN wheel loader with large rock bucket with capacity of 3.0M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.


    The LW500KN wheel loader thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
