    Optional Colors Semi Trailer Storage Containers With 12 Pcs Container Lock

    Ask Lasest Price
    Brand Name : TRUCKMAN
    Model Number : TKMSTS360
    Certification : SGS, BV, CTN
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Unit / Per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Optional Colors Semi Trailer Storage Containers With 12 Pcs Container Lock

    -1. Main Feature Of Skeleton Container Semi Trailer.


    -. Application for transport 2 pcs 20FT container and 1 pcs 40FT container

    -. The weight is 7.5 tons but the structure is stronger with Q345 material

    -. Adopt the FUWA, JOST, WABCO, LINGLONG brand good spare parts

    -. With one year quality warranty and tech support.

    -. With repair box and tool box


    Dimension and Weight
    Overall Dimension(mm)12500x2500x1650mm
    Wheelbase7,500mm+1,310mm+1,310mm
    Payload40,000kg
    Tare weight6,500kg
    G.V.W.R.46,500kg
    Functiontransport 1x20ft, 2x20ft, 1x40ft container
    Running System
    Main beamheight of the beam is 500mm,
    upper plate is 14mm,
    down plat is 16mm,
    middle plate is 8mm.
    Side beam16#
    Axle3x13Ton ZY brand
    Axle NumberThree
    Tire12R22.5, 12 pcs. Taitong brand
    Rim9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
    Suspension systemMechanical Suspension
    Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
    Electrical SystemChinese standard 24V lighting system
    Brake systemDual line pneumatic brake, no ABS
    Brake air chamber6 units T30/30 Double brake chambers
    Emergency relay valveStandard
    Diamond plate4mm
    Traction/King Pin2” and 3.5” removable Kingpin,
    bolted in type 500mm from the front face of the front bolster
    Landing GearYahua brand 28ton
    external two speed telescopic manual operation
    2,500mm behind the kingpin location
    Accessories
    Tool box1pcs, One crank and one shaft head wrench
    Mud guardSteel mud guard and front mudguard
    Spare wheel carriers2 pcs
    BumperRear bumper with adjustable height
    Electrical system1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
    Tail lamp with turn signal, brake light & reflector, side lamp etc.
    One set 6-core electric cable protected by PVC conduit on main frame
    PaintShot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed

    Optional Colors Semi Trailer Storage Containers With 12 Pcs Container Lock


    -2. Shipment Details.

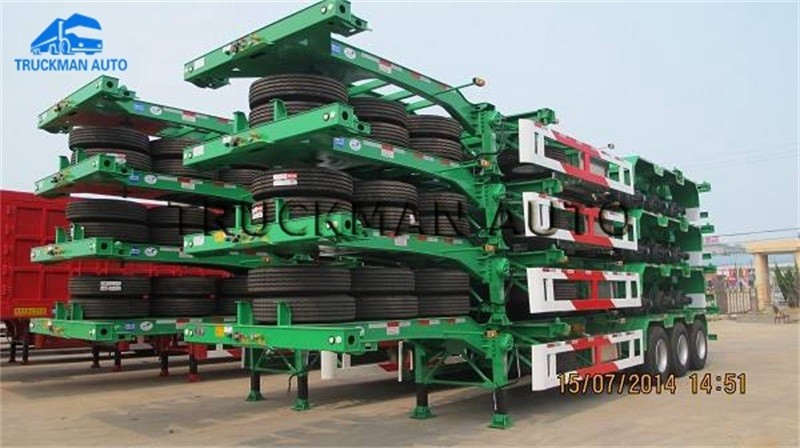

    We put 3 pcs skeleton container trailer make one, see picture and with good strapping, help customers

    reduce the freight cost. and all trailer use stronger material, automatic welding.


    -3. Trailer Working Picture.



    The customer use the skeleton container trailer transport the container from Dar Es Salaam port

    to Zambia, Congo country etc. every time need running 700km. But from purchase till to now

    no any big questions for the trailer, and we are discussing new order for skeleton trailer.
