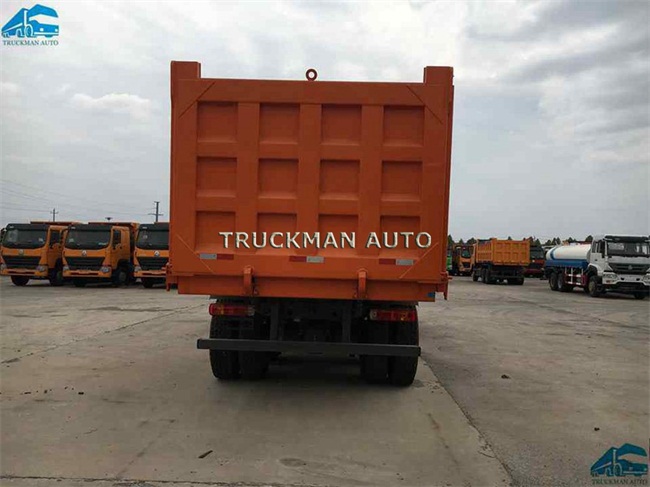

Sinotruck Howo 8x4 Tipper Truck Loading 41-50 Tons For Construction And Mining

Operating procedures
1. Do not suddenly push the lifting handle to the "lowering position" during the full-load lifting.

If this operation error occurs, the carriage suddenly rushes down, which will bring a lot of impact to the frame and even an accident. Therefore, the above operations should be avoided as much as possible, and if there are special circumstances, they must be operated carefully, and the landing speed should be slowed down as much as possible. Don't suddenly drop the carriage to the end.

2. Don't use junk car-junk brake to unload.

Due to the large inertial force of the car (usually 5 to 20 times the rated lifting force), it is easy to cause damage to the permanent deformation of the frame, welding of the compartment and sub-frame, burning of the oil pump or damage to the seal ring, and damage to the hydraulic cylinder. , The service life of the vehicle is reduced, and in serious cases, a rollover accident may occur. Therefore, it is generally forbidden to drive a dump truck while it is being lifted.

3. After the dump truck is unloaded, the power take-off must be disengaged to make the vehicle feasible.

If this operation error occurs, when the dump truck is running, the lift pump is running at a high speed for a long time without load because the power take-off is in the "engaged" position. As a result, the temperature of the hydraulic oil rises rapidly, which can easily cause damage to the oil seal of the oil pump, or even cause the oil pump to "burn out". What's more serious is that the operation of the oil pump means that the hydraulic system has a power source. Accident.

4. The power take-off cannot be in the "on" position when driving.

If in the "on" state (the red light is on), the oil pump will continue to rotate and the hydraulic system will have a power source. This will cause the cabin to automatically lift due to misoperation on the pneumatic control valve; Even if the control and distribution valve is in the "down" position, the oil must enter the oil pump, which will cause the oil pump to burn out.

Maintenance tips
New dump trucks or overhauled vehicles must be commissioned to make the lifting process stable and free of movement.

When using, all parts should be properly selected according to the regulations, which greatly saves the unloading time and labor, and the lifting mechanism exchanges the oil strictly on schedule.

Ship according to rated load. Overload is strictly prohibited.

JINAN TRUCKMAN AUTOMOBILE CO.,LTD. was established in year 2010,that mainly focus on TRUCKMAN brand all series new semi trailers, full Trailers such as container trailer, lowbed trailer, dump trailer, tank trailer, fence trailer and some China brand tractor truck head, export business. The goods can meet all certificates and different work requirements, such as BV, SGS, CO, CIQ, GCC, SONCAP, SASO, CCC, FORM E, ADR certificate etc, also with reasonable price. With years development, our business extended to more than 80 more countries and regions in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin America countries like Chile, Peru and Australia, America, Europe etc. We take “Quality, Honesty, Responsibility” as our enterprise core value to make you best cooperation experience. TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission with professional services, and are committed to becoming a world-class enterprise with international characteristics.

Quality is a foundation of the enterprise, so we cultivate "Quality-Centered", strictly control every steps and details of manufacture. Start from the materials and trailer spare parts suppliers option, then production technology, artworks, workers use, finally quality test and adjustment. To ensure every Truckman brand trailer with excellent condition to reach even over customers requirements.

Honesty is a soul of the enterprise, we held "Honesty-Oriented" flag, treat our stuffs honestly and asked them to feedback it to every customers from the world honestly. declare that we never make fake and copy materials and spare parts to our products. We would like not to convince ourselves to reduce the quality regarding to the price getting your orders. So we trusted honesty that can make the cooperation of both of us forward a big step to Benefit each other all the time.

Responsibility is a promise of the enterprise, we take "Responsibility-Ended” as our service concept from the start to the end of our cooperation. honest, quality and every promise is the responsibility that we insisted. and we stated that every problems including quality, service price caused from us is our duty. We are positive to offer our special solutions to get the responsibility.
