    Sinotruk Howo Heavy Duty Tipper Trucks 25 Tons 16-20m3 Big Cargo Box

    Ask Lasest Price
    Brand Name : SINOTRUK HOWO
    Model Number : ZZ3257N3847A
    Certification : BV, SGS, CE
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Unit / Per Month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

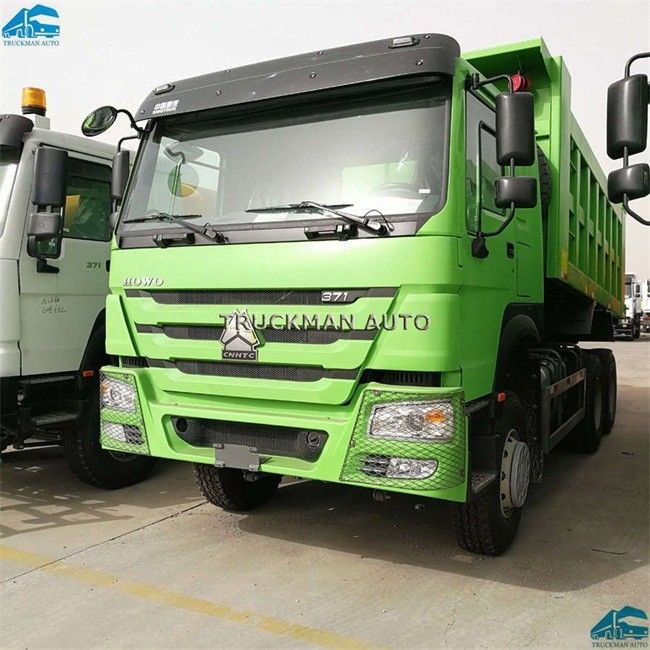

    Sinotruk Howo Heavy Duty Tipper Trucks 25 Tons 16-20m3 Big Cargo Box

    China SINOTRUK HOWO Brand 25 Tons 371HP Heavy Duty Dump Truck Tipper Truck


    . SINOTRUK HOWO 6x4 Dump Truck Main Feature.


    -. With 25-30 Tons loading capacity.

    -. 16-20m3 big cargo box

    -. Middle and front hrdraulic lifting system.

    -. 12.00R20, 13R22.5 tire optional.

    -. Low maintenance cost.


    Truck Detail
    ModelZZ3257N3847A
    Type  10 wheeler dump truck
    Engine
    Diesel4-stroke direct injection diesel engine
    ModelWD615.47, Euro 2 emission standard 6-cylinder in- line with water cooling,turbo-charging and intercooling,4 strokes
    Maximum output371HP (273kw)at 2200rpm
    Maximum torque1500Nm at 1100-1600rpm
    Number of cylinder6
    Displacement9.726L
    Gearbox
    ModelHW19710,10F/2R,Manual Gearbox
    MAX.Input Torque1900NM
    TypeDeputy box structure of planetary gear
    Cabin
    ModelHW76, with one sleeper,VOLVO Technology
    ConfigurationUp and down, left and right sides Adjustable steering wheel;
    European new type heater as a whole;
    German (VDO) instrumen;
    Four full floating suspension + suspension device;
    Double locking structure belts
    Right hand drive cabin
    Front Axle
    ModelHF9, 9 tons axle
    Rated load9000kg
    Drving Axle
    ModelHC16 axle
    TypeCentral single reduction+hub reduction,casting axle housing
    Rated load2x16000kg
    Tyre
    Model12.00R20 Tyre,10+1Pcs
    Rims8.5-20,10hole-steel
    Cargo Box
    Size5600x2300x1600mm. 20.6m3
    Lifiting Typemiddle hydraulic lifiting
    Thicknessbottom 8mm and side 6mm
    Other Detail
    Overall dimension8400x2560x3400(LxWxH)(mm)
    Wheel base3800+1350mm
    Max loading weight35000Kg

    Sinotruk Howo Heavy Duty Tipper Trucks 25 Tons 16-20m3 Big Cargo Box


    Sinotruk Howo Heavy Duty Tipper Trucks 25 Tons 16-20m3 Big Cargo Box


    -2. Optional Parts For HOWO Dump Trucks.



    Two pcs warning lamp could optional, used for mine work and other dangerous goods transport.

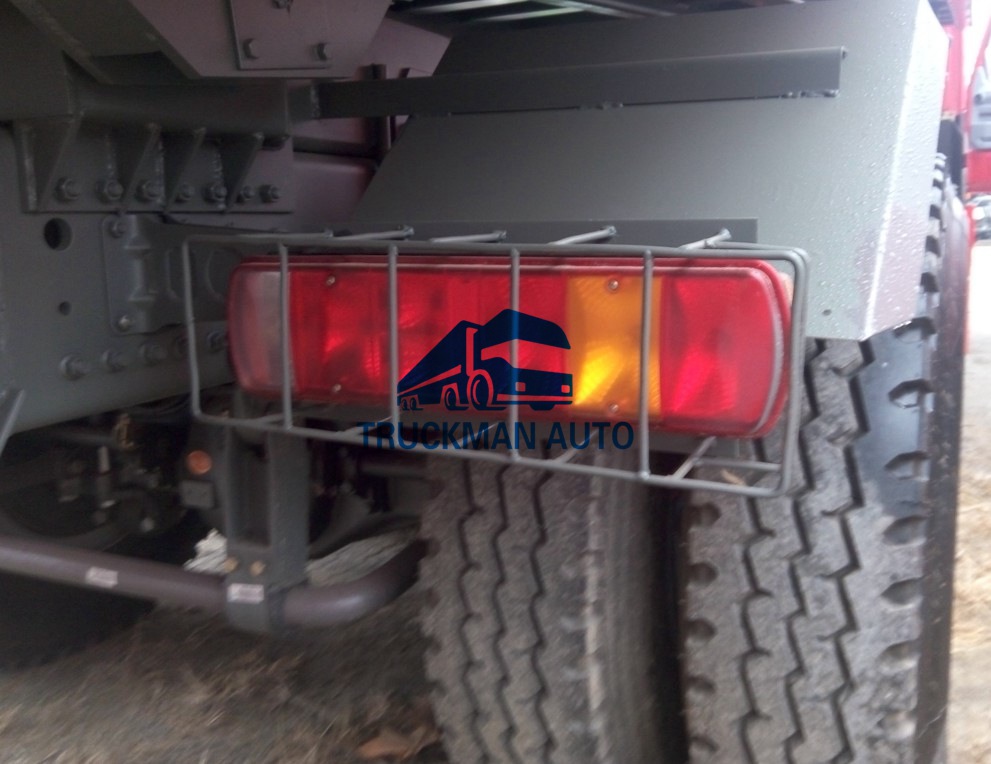

    Head lamp and rear tail lamp protect cover, help reduce the repair cost.



    Whole bumper could optional. For truck clean.
