    25000 Liters 25 Tons Full Trailer Truck High Loading With The Drawbar Big

    Ask Lasest Price
    Brand Name : TRUCKMAN AUTO
    Model Number : TKM25OFL
    Certification : SGS, BV
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Unit / Per Month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    25000 Liters 25 Tons Full Trailer Truck High Loading With The Drawbar Big

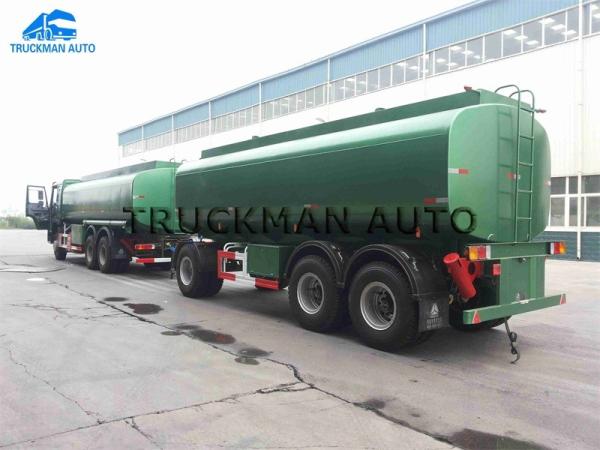

    25000 Liters 25 Tons Oil Tank Full Trailer Truck With The Drawbar Big


    . Main Specification For The Full Tanker Trailer.


    -. With the drawbar connect with the fuel tank trucks.


    -. Loading 25 tons with the stronger chassis.


    -. All FUWA, LINGLONG etc famous brand spare parts.


    -. The main material is Q345B, high strength steel.


    Tare WeightAbout 7.6T
    Outer Side Dimension7800mm*2500mm*3600mm
    Loading Capacity50T
    Total Volume25m³-60 m³
    Tanker body material5mm or 6mm Q235 carbon steel /aluminum /stainless steel
    End Plate5mm or 6mm Q235 carbon steel /aluminum /stainless steel
    Manhole CoverCabon steel or Aluminum alloy API manhole cover, ∮500mm
    Bottom ValveAluminum API Pneumatic Bottom Valve
    Discharging ValveDiameter is 3 or 4 inch
    CompartmentsOptional
    Discharging Pipe4” rubber hose, 2 pcs, 6m/each
    Cat WalkWith (Common model or special design)
    Chassis parts
    Main BeamsWeldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
    Axle2 or 3 axles, BPW/FUWA/HUAJING brand
    Landing GearJOST (D200T)or CHINA BRAND 28T
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension/Germany or America type /air suspension
    Leaf Spring90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without
    Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks.
    Rim9.00-22.5/8.00-20/8.5-20 China Brand
    Tire12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
    ABSOptional
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    AccessoriesOne standard tool box

    25000 Liters 25 Tons Full Trailer Truck High Loading With The Drawbar Big


    25000 Liters 25 Tons Full Trailer Truck High Loading With The Drawbar Big


    -2. FAQ


    -. Terms of paymemt.

    30% as the deposit by T/T, 70% balance before delivery.


    -. What’s your MOQ?

    One unit trailer or truck. But suggest two trailers one time to save the freight.


    -. Whats your delivery time.

    20-25 working days after received the deposit.


    -. What is your terms of shipment?
    The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.


    -. Can you accept the custom made?

    Definitely! We could design the trailer according to your request.


    -. What’s your warranty?

    All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
