    20ft Container Full Trailer Truck Loading Capacity 35 Tons With 3 Axles

    Ask Lasest Price
    Brand Name : TRUCKMAN
    Model Number : TKMFCTL
    Certification : SGS, BV, CTN
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Units Per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

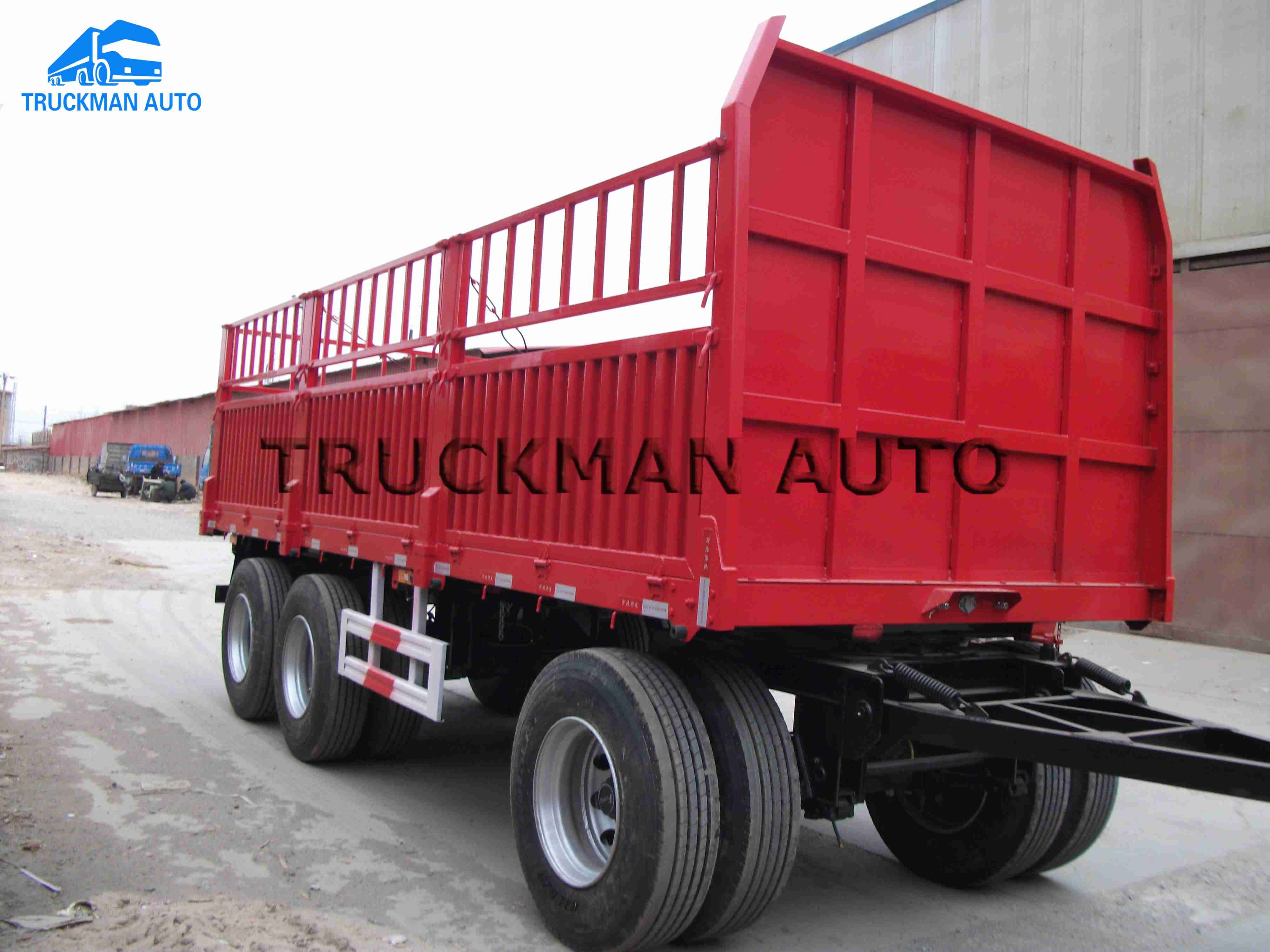

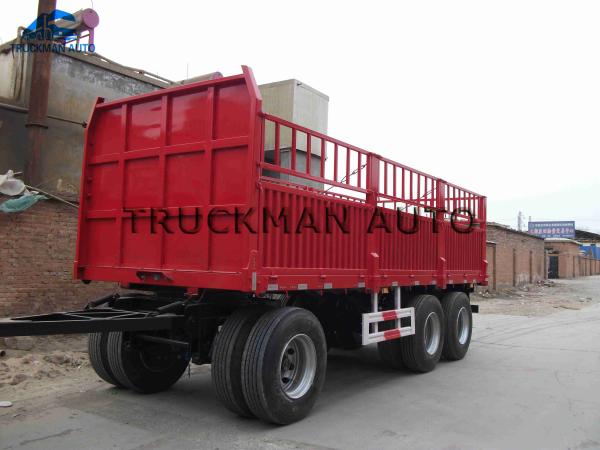

    20ft Container Full Trailer Truck Loading Capacity 35 Tons With 3 Axles

    -. Main Specification For The Full Cargo Trailer.


    -. With 6 pcs container lock for transport 20FT container.

    -. The fence could remove and the height is 800+600mm

    -. Easily operating and maintenance

    -. Use good brand spare parts, such as FUWA, JOST, WABCO etc.


    Chassis

    Main Beam

    -1. “I” structure design.Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged - Arc processes

    -2. Main beam height: 500mm

    -3. Main beam upper plate: 14mm

    -4. Main beam middle plate: 8mm

    -5. Main beam lower plate: 16mm

    -6. Platform thickness: 4mm


    Cargo Box

    -1. Fence could remove;

    -2. Side 1.5mm, bottom 3mm; checkered plate

    -3. Upright column: 4mm;

    -4. Edge beam: 6mm;

    -5. With stronger hooks, container lock;

    Landing GearJOST E100 one side Operation, 28 tons
    King PinOne unit of 90# standard bolt type king pin JOST brand
    Running Gear
    SuspensionAmerican type mechanical suspension;
    Leaf Spring120mmx16mmx10 pcs, 6 sets;
    AxleFUWA brand, 3x13T axles;
    Wheel Rim9.0x12 units, 18mm thickness;
    Tire12R22.5 LINGLONG brand 12pcs;
    ABS SystemWABCO brand brake system;
    Electric System
    Electric24v, 7 core socket;
    LightsLED lights standard; with protect cover;
    Electric WireFactory Standard;
    Others
    Spare Tire Carrier1 pcs
    Mud GuardSteel material, one whole;
    Tool BoxStandard;
    OthersOne repair tool box;

    20ft Container Full Trailer Truck Loading Capacity 35 Tons With 3 Axles20ft Container Full Trailer Truck Loading Capacity 35 Tons With 3 Axles
