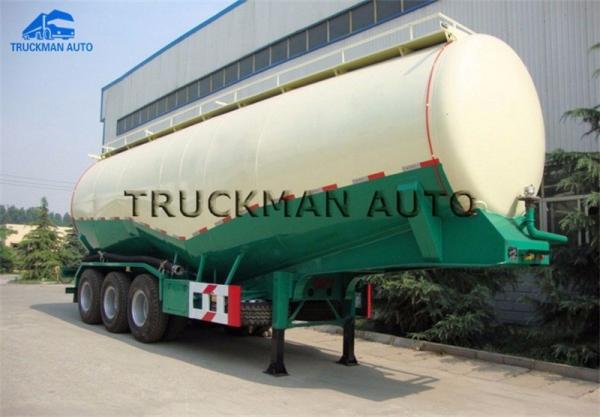

    3 Axles Concrete Mixer Trailer 40 Cubic Truckman Brand With Tool Box

    Ask Lasest Price
    Brand Name : TRUCKMAN
    Model Number : TKM40CCT
    Certification : SGS, BV, CTN
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Units Per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    3 Axles Concrete Mixer Trailer 40 Cubic Truckman Brand With Tool Box

    -1. Main Specification For The Concrete Mixer Trailer.


    -. With 4 cylinder diesel WEICHAI brand engine

    -. 35-55 cubic tank box

    -. Easy unloading cement

    -. Use good brand spare parts, such as FUWA, LINGLONG, JOST etc

    -. Tire model could optional, such as 315/80R22.5, 12.00R20, 13R22.5


    Weight:Loading Capacity60T
    Axle Weight Load13T
    SpecificationAxle number3
    Axle BrandFUWA
    SuspensionCommon mechanical
    King Pin2" or 3.5" traction pin
    Dimensions (LxWxH)13000*2500*4200mm
    Support legs28T
    Wheel Rim9.0-22.5
    Wheelbase7180+1310+1310mm
    Steel Spring10 pieces per axle
    Tank body & endSt-37/4mm steel&6mm steel sheet Shape:V type
    EngineDiesel engine:weichai brand model:4102.44 KW
    Discharge valve & pipe4” disc valve&4” seamless steel tube
    Air-charging system2” main hole. 2” check valve.1.5” safe valve.0.4Mpa.gauge
    Quadratic blow1” diameter check valve
    Discharge cover2-4 sets of 100mm discharge valves
    Landing GearManual operating, Heavy duty landing gear (Brand Optional)
    Manhole cover500mm manhole cover 2 sets with 2 breather valve
    Accessories1 Set standard tool box
    LightTail lamp with turn signal, brake light & reflector, side lamp etc.
    Painting1coat of anti corrosive primer, twice coats of final paint
    compressorBOHAI brand 14M3
    Tire:Tire spe.12R22.5 Chinese brand
    Number of Tire12 pieces
    Spare Tire Carriers2 pieces
    Frame: (specs. and materials)Main beamThe height of the beam is 500mm;
    Down plate is 16mm;Middle plate is 8mm. Up plate is 14mm
    Tank body5mm steel plate, head and back head made of 6mm steel plate
    the shape can be column or TV square shape
    BrakeBrake ChamberSix big chamber( Brand Optional )
    Brake systemDual Line Brake system (ABS )

    3 Axles Concrete Mixer Trailer 40 Cubic Truckman Brand With Tool Box3 Axles Concrete Mixer Trailer 40 Cubic Truckman Brand With Tool Box


    -2. Shipment Details.




    There have RO-RO, BULK CARGO, FRAME vessel could choose, and delivery time could guarantee.

    And with different freight cost, please contact with us get more details.
