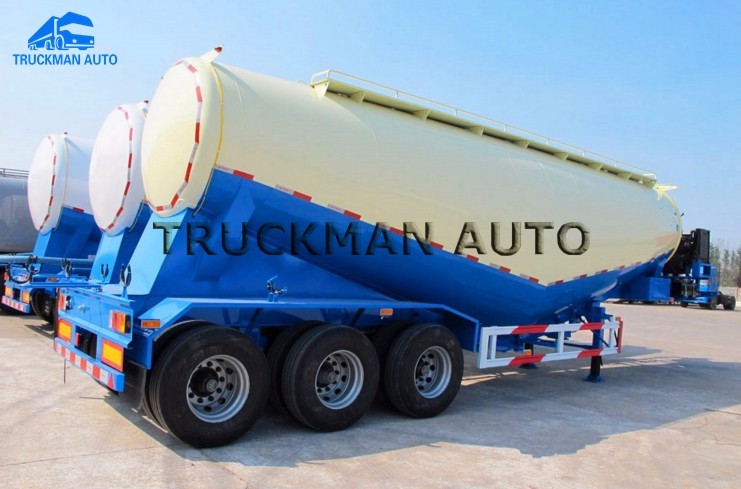

    45m3 Cement Powder Tankers , Bulk Cement Trailer With 315/80r22.5 Tire

    Ask Lasest Price
    Brand Name : TRUCKMAN AUTO
    Model Number : TKMCTT350
    Certification : SGS, CTN, BV
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Unit / Per Month
    Delivery Time : 20-25 working days
    • Product Details
    • Company Profile

    45m3 Cement Powder Tankers , Bulk Cement Trailer With 315/80r22.5 Tire

    -1. Main Specification For The Cement Tanker Trailer.


    -. With big tanker body transport all kind cements.


    -. WEICHAI diesel engine and BOHAI compressor.


    -. 500mm (Diameter) manhole and 4 inch discharge valve.


    -. automatic welded design, high strength steel.


    Specifications of Tanker Body
    Dimension(mm)12000×2490×3990 (Exact size depends on the final design)
    Tare weight (kg)About 7500-15000
    Tank capacity (CBM)30-50(Volume optional)
    ShapeOptional(v or w shape)
    CompartmentsOne or two compartments
    Tanker Body MaterialT622JJ carbon steel or 5XCT4 aluminium 5454
    End Plate4mm or 5mm T622JJ carbon steel
    5mm or 6mm 5XCT4 aluminium 5454
    Rim8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand
    Tire12R22.5/11R22.5/13R22.5/11.00R20/12.00R20( brand can be Optional)
    EngineWeichai 4105 Engine
    Manhole Cover500 mm carbon steel or aluminium alloy manhole
    Bottom Valve3''/ 4" disc valve
    Discharging ValveDiameter is 3 or 4 inch
    Discharging Pipe4” rubber hose, 2 pcs, 6m/each
    Air compressor10m3,12m3
    Diesel EngineWeichai Huafeng, Tianhe 4102/4105
    Main BeamWelding design or Special design, connected by bolts and nuts.
    Material:Q345 carbon steel
    Height 500mm,
    Upper Thickness 14~18mm,
    Middle Thickness 8~12mm,
    Down Thickness 16~20mm
    Axle2 or 3 axles, BPW/FUWA brand(Optional)
    Landing GearJOST(D200T)or China brand 28T(Two speed)
    Brake SystemWABCO Valve with big chamber
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension or Air suspension
    Leaf Spring((mm)90(W)×13(Thickness)×10(Layer) or 100×12×12
    Rear ladderremovable
    LightsTurning Light, Side Marker Light, Tail Light
    Voltage(v)24v
    Receptacle7 ways (7 wire harness)
    PaintingComplete Chassis sand blasting to clean rust,1coat
    of anti-corrosive prime, 2 coats of final paint
    ABSOptional
    AccessoriesOne standard tool box

    45m3 Cement Powder Tankers , Bulk Cement Trailer With 315/80r22.5 Tire


    45m3 Cement Powder Tankers , Bulk Cement Trailer With 315/80r22.5 Tire


    -2. FAQ


    -. Terms of paymemt

    30% as the deposit by T/T, 70% balance before delivery.


    -. What’s your MOQ?

    One unit trailer or truck. But suggest two trailers one time to save the freight.


    -. Can you accept the custom made?

    Definitely! We could design the trailer according to your request.


    -. What’s your warranty?

    All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
