    3 Axles 50 Tons Cement Bulk Carrier Truck Optional Volume Quick Loading Unloading

    Ask Lasest Price
    Brand Name : TRUCKMAN AUTO
    Model Number : TKMOTT360
    Certification : SGS, BV, CTN
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Pcs / One Month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

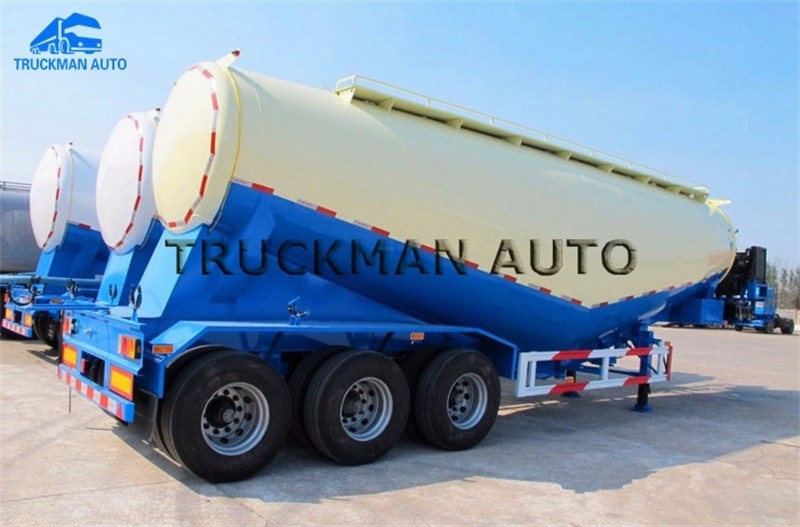

    3 Axles 50 Tons Cement Bulk Carrier Truck Optional Volume Quick Loading Unloading

    3 Axles 50 Tons Cement Bulk Powder Tanker Trailer Volume Optional


    Main Specification For The Cement Bulk Tanker Trailer.


    -. With 35-55m3 volume tanker body.

    -. Quick loading and unloading bulk cement.

    -. Integrated tank synthesis, scientific fluidized bed design and reasonable layout can not

    only effectively shorten the unloading time, but also improve the utilization of tank volume,

    so that the ash rate is greatly reduced.


    Weight:Loading Capacity45T
    Axle Weight Load13T
    Specification:Axle number3 Axle
    Axle BrandFUWA
    SuspensionCommon mechanical
    King Pin2" or 3.5" traction pin
    Dimensions (LxWxH)13000*2500*4200mm
    Support legs28T
    Wheel Rim9.0-22.5
    Wheelbase7180+1310+1310mm
    Steel Spring10 pieces per axle
    Tank body & endSt-37/4mm steel&6mm steel sheet Shape:V type
    EngineDiesel engine:weichai brand model:4102.44 KW
    Discharge valve & pipe4” disc valve&4” seamless steel tube
    Air-charging system2” main hole. 2” check valve.1.5” safe valve.0.4Mpa.gauge
    Quadratic blow1” diameter check valve
    Discharge cover2-4 sets of 100mm discharge valves
    Landing GearManual operating, Heavy duty landing gear (Brand Optional)
    Manhole cover500mm manhole cover 2 sets with 2 breather valve
    Accessories1 Set standard tool box
    LightTail lamp with turn signal, brake light & reflector, side lamp etc.
    Painting1coat of anti corrosive primer, twice coats of final paint
    compressorBOHAI brand 14M3
    Tire:Tire spe.12R22.5 Chinese brand
    Number of Tire12 pieces
    Spare Tire Carriers2 pieces
    Frame: (specs. and materials)
    Main beamThe height of the beam is 500mm;
    Down plate is 16mm;Middle plate is 8mm.
    Tank body5mm steel plate, head and back head made of 6mm steel plate
    the shape can be column or TV square shape
    Brake:Brake ChamberSix big chamber( Brand Optional )
    Brake systemDual Line Brake system (ABS )

    3 Axles 50 Tons Cement Bulk Carrier Truck Optional Volume Quick Loading Unloading


    3 Axles 50 Tons Cement Bulk Carrier Truck Optional Volume Quick Loading Unloading


    -2. Our Factory.



    -3. Shipment Picture For The Cement Tanker Trailer.



    Shipment By The Container Flat Rack Vessel.



    Shipment By Bulk Cargo Vessel
