Brand Name : | SINOTRUK HOWO |
Model Number : | ZZ3257N3647A |
Certification : | SGS, BV, CIQ, FORM E |
Price : | negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1500 Unit / Per Month |
Delivery Time : | 30 working days |
-1. SINOTRUK HOWO Heavy Duty Dump Truck Detail.
10 wheel SINOTRUK HOWO dump truck can loading 25-30 tons, the cargo box can suitable for transport
mining and construction work request. Also the engine horsepower range from 336HP to 420HP, meet
the mountain road driving request.
-2. SINOTRUK HOWO Heavy Duty Dump Truck Main Specification.
Description | Parameter value |
Product Name | SINOTRUK HOWO Heavy Duty Dump Truck |
Application | For construction and mining work |
Engine | WD615.47, 371HP, EURO II |
Cabin | HW76 model, with bed, A/C, top warning lamp |
Gearbox | HW19710, 10 forward and 2 reverse gear |
Front Axle | 1x9,000kg |
Driving Axle | 2x16,000kg |
Tire | 12.00R20, 10+1 pcs, TRIANGLE brand |
Bucket | 5600x2300x1500mm, bottom 8mm, side 6mm |
Fuel Tank | 300L (400L fuel tank optional) |
Loading Tons | 25-30 tons |
Other | Intercooler protect cover, reverse buzzer optional |
Dimension | 8400x2580x3400mm |
The SINOTRUK HOWO heavy duty dump truck specification is only for reference, we could recommend
the other model SINOTRUK HOWO dump truck according to your request.

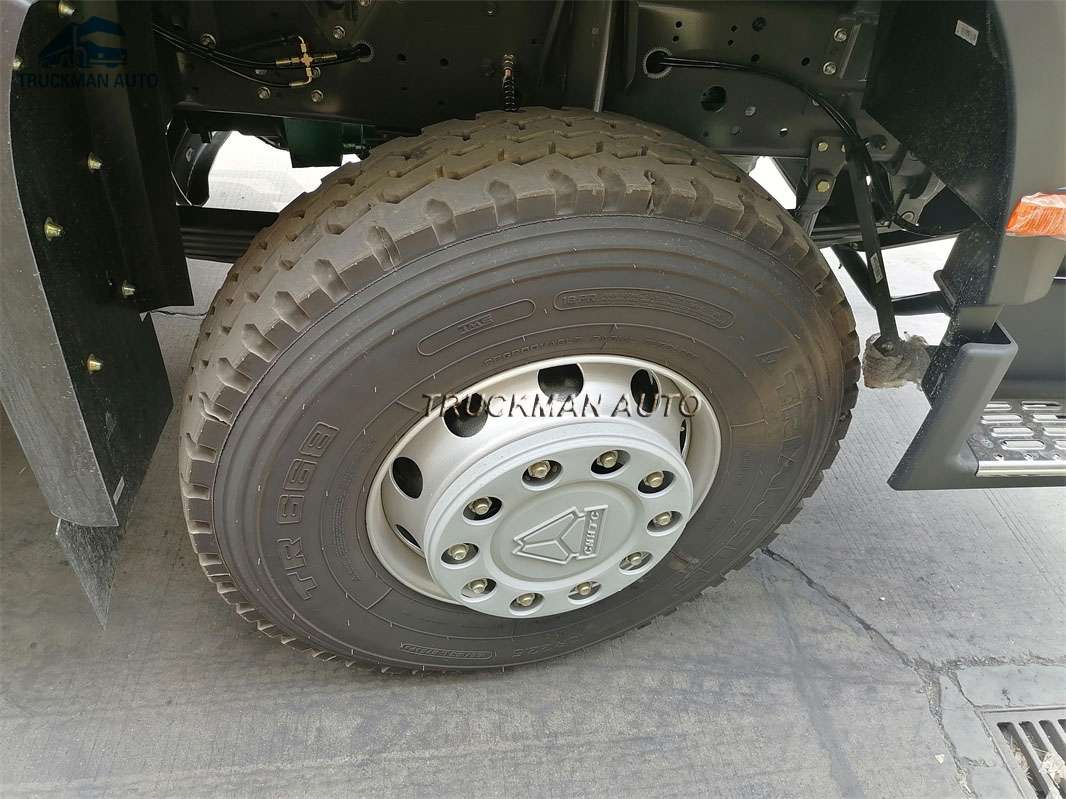

-3. SINOTRUK HOWO Heavy Duty Dump Truck Tire.
Our SINOTRUK HOWO heavy duty dump truck tire work with famous brand, such as TRIANGLE,
DOUBLE COIN, LINGLONG, CHENGSHAN, GOODYEAR, AEOLUS etc brand, model can choose the
12R22.5, 13R22.5, 315/80R22.5, 12.00R20, 12R24 etc. And will recommend the suitable model tire
meet truck work condition.
TRIANGLE brand 13R22.5 model tire
LINGLONG brand 12.00R20 model tire
CHENSHANG brand 13R22.5 model tire
DOUBLE COIN brand 13R22.5 model tire
![]() |
