Brand Name : | SINOTRUCK HOWO |
Model Number : | ZZ3257N3647A |
Certification : | SGS, BV, CIQ, FORM E |
Price : | negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1500 Unit / Per Month |
Delivery Time : | 35 working days |

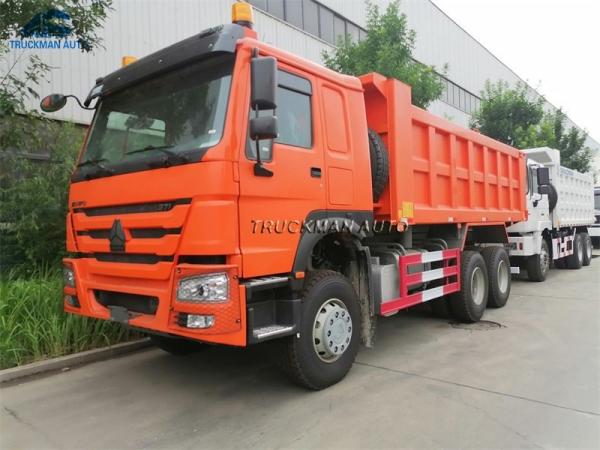

-1. SINOTRUCK HOWO Mining Tipper Truck Detail.
SINOTRUCK HOWO mining tipper truck can suitable for construction and civil engineering work, the easy
broke parts like lamp, intercooler cooler, radiator, battery etc all with good protect cover, avoid the unnecessary lose.
Also the tire have radial and tubeless model can optional, meet the different road request
-2. SINOTRUCK HOWO Mining Tipper Truck Main Specification.
Description | Parameter value |
Product Name | SINOTRUCK HOWO Mining Tipper Truck |
Application | For civil engineering and mining sanitation |
Engine | WD615.47, 371HP, EURO 2 |
Cabin | HW76, with one bed, A/C, electric window switch |
Gearbox | HW19710, 10 forward and 2 reverse gear |
Cargo Box | 5600x2300x1500mm, 19.32 cubic meters |
Tire | 12.00R20/13R22.5/12R24, 10+1 pcs, TRIANGLE brand |
Front Axle | HF9, 9 tons axle, 9000kg |
Drive Axle | HC16, 16 tons axle, 2x16000kg |
Oil Tank | 300L (400L optional) |
Loading Tons | 25-30 Tons |
Max Speed | 75km/h |
Dimension | 8350x2560x3450mm |
The SINOTRUCK HOWO mining tipper truck specification is only for reference, we could recommend the
other model SINOTRUCK HOWO mining tipper truck according to your request.
-3. SINOTRUCK HOWO Mining Tipper Truck Cabin Picture.
-. HOWO 76 New face cab (one bed,with air conditioner),
-. 2- arm windscreen wiper system with three speeds,
-. laminated windscreen with casted-in radio aerial,
-. hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,
-. with heating and ventilating system,
-. adjustable roof flap,
-. with stereo radio/cassette recorder,
-. safety belts and adjustable steering wheel, air horn,
-. with 4-point support fully floating suspension and shock absorbers.
![]() |
