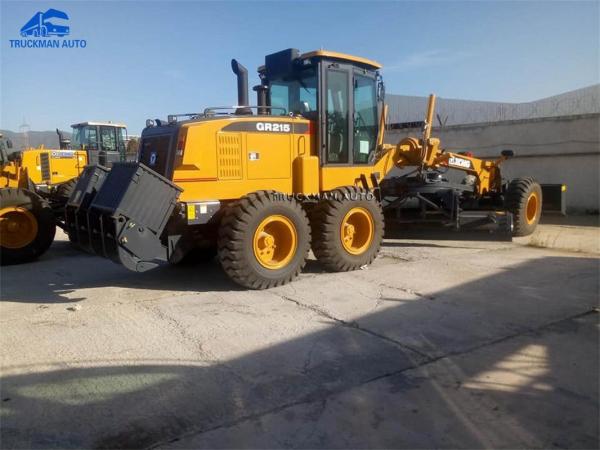

215HP Heavy Construction Machinery XCMG Motor Grader GR215

Main technical parameters of GR215 motor grader
Item GR215

Basic parameters Engine model 6CTA8.3-C215/CTAA8.3
Rated power/speed 160kW/2200rpm 153kW/2200rpm
Overall dimensions (standard) 8970x2625x3470
Machine weight (standard configuration) 16500kg
Tire specification 17.5-25
Ground clearance (front axle) 430mm
Wheelbase 2156mm
Axle distance between front and rear 6219 mm
Center and rear wheelbase 1538 mm
Performance parameters Forward speed 5, 8., 11, 19, 23., 38km/h
Backward speed 5, 11, 23km/h
Traction force f=0.8 90kN
Maximum climbing ability 30%
Tire inflation pressure 260kPa
Working system pressure 18MPa
Transmission pressure 1.3—1.8Mpa
Working parameters Maximum steering angle of front wheel ±50°
Maximum tilt angle of front wheel ±17°
The maximum swing angle of the front axle ±15°
Maximum swing angle of balance box 15° front and 15° rear
Maximum steering angle of frame ±27°
Minimum turning radius 7.3m
Shovel
Knife maximum lifting height 450mm
Maximum shovel depth 500mm
Maximum roll angle 90°
Cutting angle 28°—70°
Rotation angle 360°
Length x string height 4270x610mm
Filling oil amount Coolant 50L
Fuel tank 280L
Engine 24L
Transmission 38L
Balance box 46L
Drive axle 28L
Hydraulic oil 110L

What is XCMG Motor Grader?

GR series motor graders are mainly used for large-area ground leveling, trenching, slope scraping, bulldozing, soil loosening, snow removal and other operations on roads, airports, farmland and other large areas. It is a necessary engineering machinery for national defense engineering, mine construction, urban and rural roads, water conservancy construction, and farmland improvement.
