    8300x2560x3450mm Dump Truck Tipper , Industrial Dump Truck With One Bed Cabin

    Ask Lasest Price
    Brand Name : SINOTRUCK HOWO
    Model Number : ZZ3257N3647A
    Certification : SGS, BV, CTN
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000 Unit / Per Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    8300x2560x3450mm Dump Truck Tipper , Industrial Dump Truck With One Bed Cabin

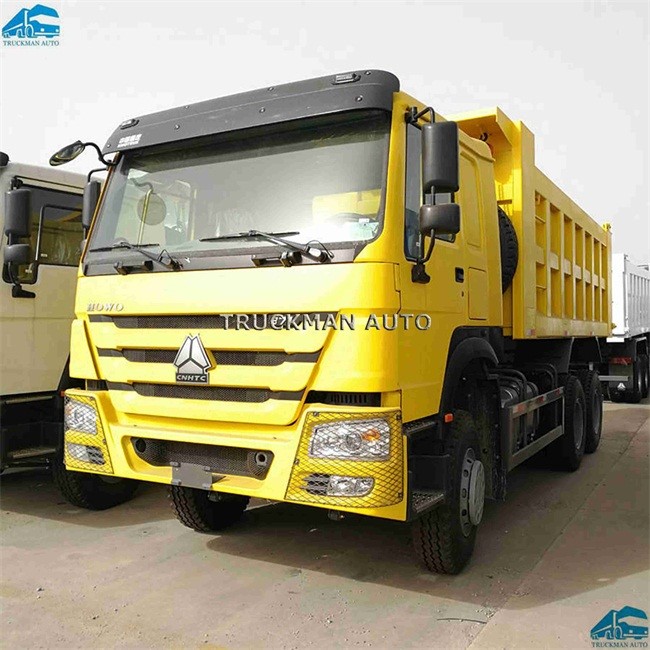

    2020 Year SINOTRUK HOWO Heavy Duty Dump Tipper Truck With 371HP Engine


    1. HOWO 6x4 Dump Truck Main Details.


    -. Engine from 371HP to 420HP.

    -. With one bed cabin and A/C. right hand drive cabin could optional

    -. 16-20m3 big cargo box, middle lifting or front lifting.

    -. Other name: HOWO tipper truck, howo dumper truck, howo tipping truck.


    Dimensions (unloaded)8300x2560x3450mm
    Cargo body size(mm)5800x2300x1500, T-middle lift, bottom 8mm, side 6mm
    Approaching angle/departure angle (°)19/27
    Overhang (front/rear) (mm)1500/1560
    Wheel base (mm)3600+1350
    Max speed (kph)75
    Curb weight (kg)12380
    Loading weight (kg)12490
    EngineModelWD615.47, water-cooled, four strokes,
    6 cylinders in line with water cooling, turbocharged and interfolding, directly injection
    Fuel typeDiesel
    Horse power, max (kW/rpm)371HP,273/2200
    EmissionEuro 2
    Fuel tanker capacity300
    TransmissionModelHW19710
    Brake systemService brakeDual circuit compressed air brake
    Parking brakespring energy, compressed air operating on rear wheels
    Steering systemModelZF8118
    Front axleHF9 Drum, Steering with double T-cross section beam
    Rear axleHC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
    Tyre12.00R20, radial tire
    Electrical systemBattery2X12V/165Ah
    Alternator28V-1500kW
    Starter7.5kW/24V

    8300x2560x3450mm Dump Truck Tipper , Industrial Dump Truck With One Bed Cabin


    8300x2560x3450mm Dump Truck Tipper , Industrial Dump Truck With One Bed Cabin



    -2. HOWO 6x4 Dump Truck Video.


    -3. FAQ.


    -. Terms of paymemt.

    30% as the deposit by T/T, 70% balance before delivery.


    -. What’s your MOQ?

    One unit trailer or truck. But suggest two trailers one time to save the freight.


    -. Whats your delivery time.

    20-25 working days after received the deposit.


    -. What is your terms of shipment?
    The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.


    -. Can you accept the custom made?

    Definitely! We could design the trailer according to your request.


    -. What’s your warranty?

    All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
