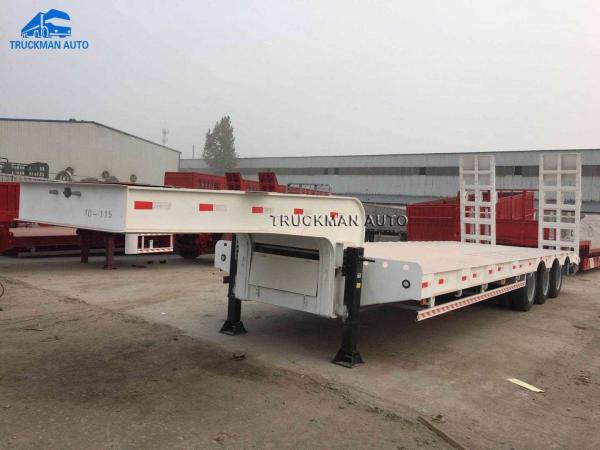

    High Strength Steel 3 Axle 50 Tons Lowboy Semi Trailer

    Brand New 50 Tons Lowboy Semi Trailer Available


    -1. 50 Tons Lowboy Semi Trailer Main Detail.


    When loading mechanical equipment on a lowboy semi trailer, the mechanical equipment is usually

    loaded from the rear of the lowboy semi trailer, that is, the mechanical equipment is moved from the

    rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the lowboy

    semi trailer on. The lowboy semi trailer running structure uses high-strength international steel material,

    which has a light weight and guarantees its anti-torsion, anti-vibration, and anti-bump capabilities, and

    meets different road bearing capabilities. The width of the gooseneck part is: 1380mm, 1400mm, 1420mm, 1480mm.



    -2. 50 Tons Lowboy Semi Trailer Main Specification.


    DescriptionParameter value
    Product NameLowboy semi trailer
    Loading Weight70000kg
    Tare Weight11000kg
    Axle3 axle, 3x13 tons
    SuspensionAmerica type, 8mm thickness
    Leaf Spring90x16mmx10pcsx6sets
    Rim18mm thickness
    Tire12.00R20 or 315/80R22.5, 12 pcs
    Brake SystemWABCO brand, ABS and 6 pcs brake chamber
    Thickness Of Frame

    Upper plate 16mm, middle 8mm,

    lower plate 18mm, “I” type main beam

    MaterialT700, high strength steel
    Loading Area Size (LxWxH)9000x3000x1300mm
    Dimension13000x3000x1300mm

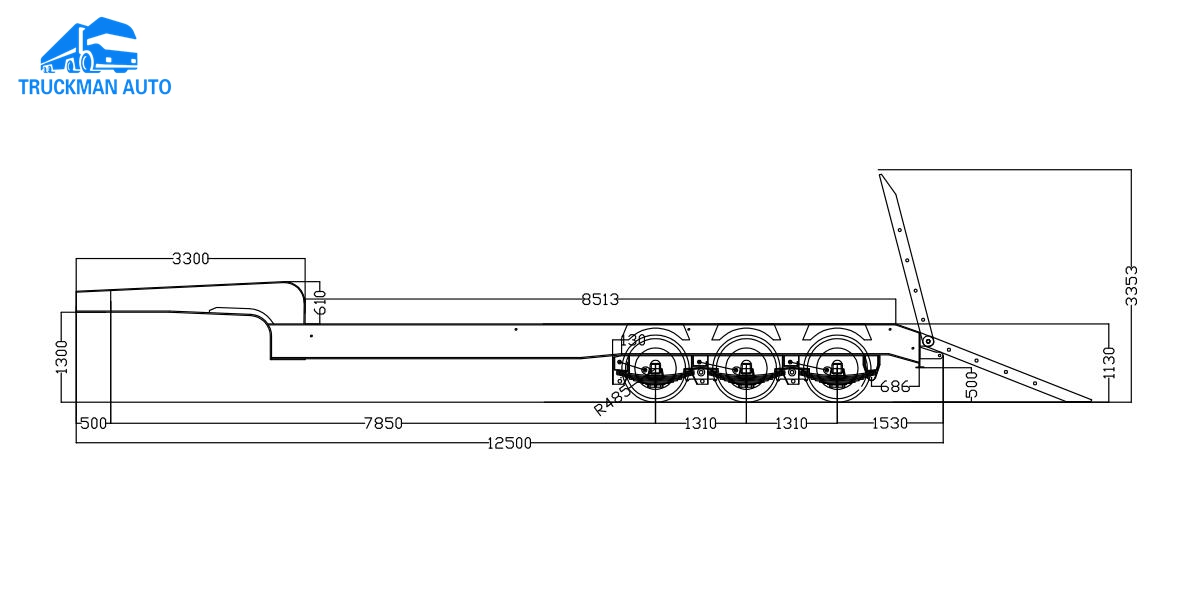

    -3. 50 Tons Lowboy Semi Trailer Design Draft.



    The size of lowboy semi trailer could change according to your request.
