    High Tensile Dump Semi Trailer With Q345b Material With Rear Lamp Protect Cover

    Ask Lasest Price
    Brand Name : TRUCKMAN AUTO
    Model Number : TKMDST370
    Certification : SGS, BV, CIQ
    Price : Price is negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Pcs / One Month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    High Tensile Dump Semi Trailer With Q345b Material With Rear Lamp Protect Cover

    3 Axles 70 Tons Dump Tipping Semi Trailer With Q345B Material


    1. Main Specification For The Dump Semi Trailer.


    -. 11.00R20, 12.00R20,12R22.5, 315/80R22.5 model tire could optional.

    -. HYVA brand hydraulic front lifting system.

    -. Thickness of bottom from 6mm to 20mm, thickness of side from 4mm to 18mm.

    -. With rear lamp protect cover.


    Dimensions10900mm*2500mm*3600mm
    Loading30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3
    Tire11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle, Linglong
    MaterialMain beams Q345B, upper flange:16mm, middle:10mm, down:18mm
    Axles13T/16/20T BPW or FUWA brand
    King Pin2 inch or 3.5 inch JOST Brand
    Brake SystemWABCO Valve with big chamber
    LandingGearsJOST brand two-speed, Manual operating heavy duty 28ton
    SuspensionBogie suspension, spring suspension, Air suspension
    Hydraulic systemHYVA brand
    ElectricalSystem24v, 7core socket, lights according to European standards (suitable for all market)
    Floor8mm plate, side wall 6mm
    Other parts1 tool boxs, 1 spare tire carrier
    FunctionsTransport sand,earth work, stone,etc

    High Tensile Dump Semi Trailer With Q345b Material With Rear Lamp Protect Cover


    High Tensile Dump Semi Trailer With Q345b Material With Rear Lamp Protect Cover

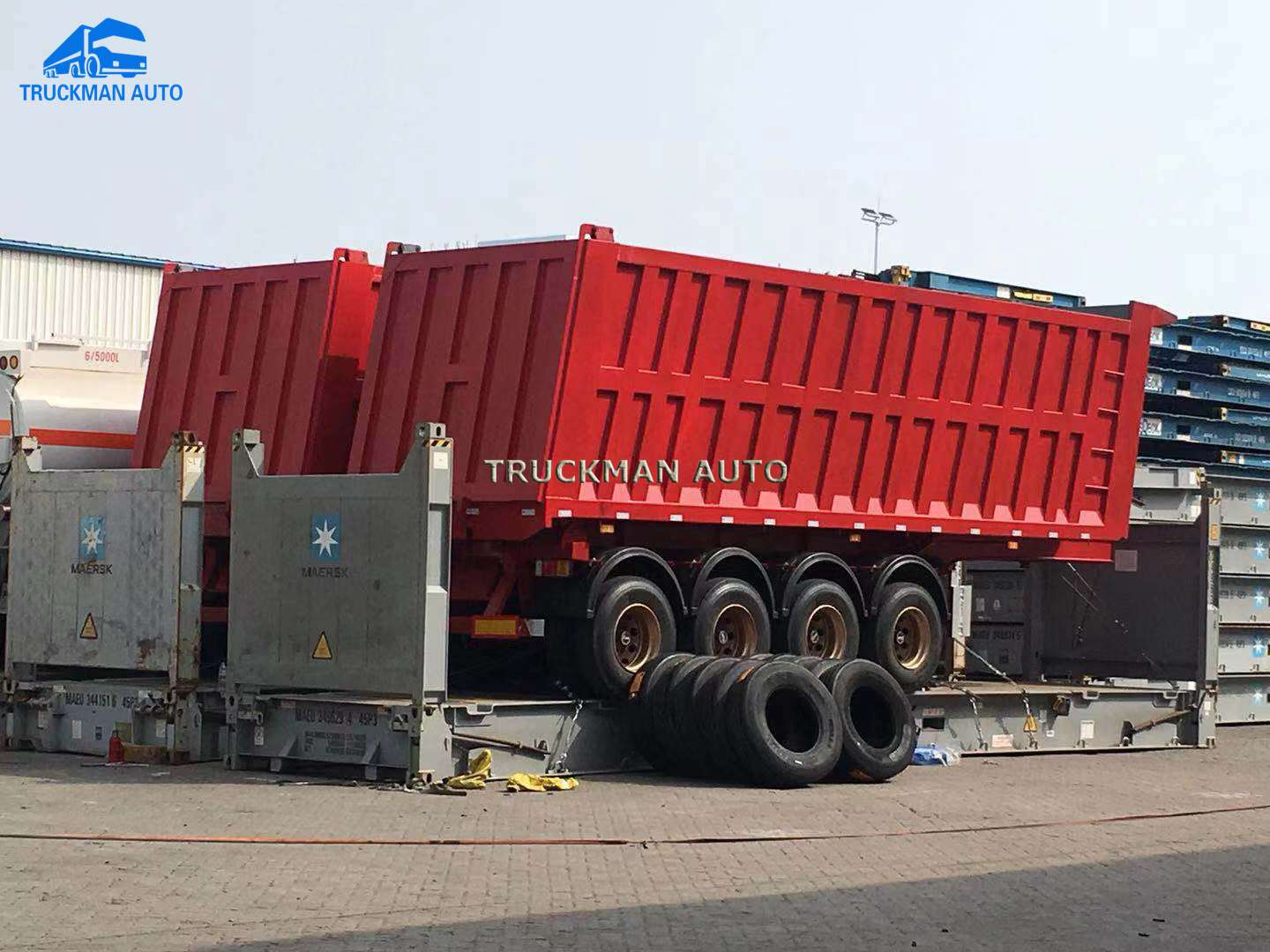

    -2. Shipment Picture For Reference.



    Shipment by the container flat rack vessel.



    Shipment by the container vessel.
