    12.00R20 Tire 4 Axle 80 Tons Low Bed Semi Trailer For Ghana

    Ask Lasest Price
    Brand Name : TRUCKMAN AUTO
    Model Number : TKM480LLT
    Certification : SGS, BV, CIQ, FORM E
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Unit / Per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    12.00R20 Tire 4 Axle 80 Tons Low Bed Semi Trailer For Ghana

    4 Axle 80 Tons Low Bed Semi Trailer For Ghana

    -1. 4 Axle 80 Tons Low Bed Semi Trailer Detail.


    4 axle 80 tons low bed semi trailer tire use the radial model, 12.00R20. Suitable for the bad road

    work condition, the brand is CHAOYANG, LINGLONG optional.


    -. The material is high strength steel Q355, main beam and side beam thickness enhanced.


    -.Can add the 200-500mm extendable plate, for big size bulldozer, excavator transport etc.


    -2. 4 Axle 80 Tons Low Bed Semi Trailer Specification.


    DescriptionParameter Value
    Product Name4 Axle 80 Tons Low Bed Semi Trailer
    ApplicationFor excavator, road roller etc transport
    Axle4 axle, 16 tons axle, ZY brand
    SuspensionHeavy duty 8mm thickness
    Leaf Spring90x16mmx10pcsx8sets
    Tire12.00R20, 16 pcs, radial model
    Rim18mm thickness
    Support LegJOST 28 tons
    Tractor PinJOST 90# heavy duty version
    LadderMechanical model, hydraulic ladder optional
    Loading Tons80 tons
    Dimension13000x3000x1350mm


    The 4 axle 80 tons low bed semi trailer specification only for your reference, we will recommend other

    model low bed semi trailer according to your request.

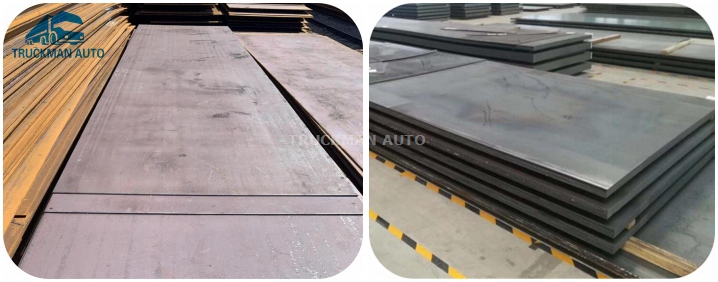

    -3. 4 Axle 80 Tons Low Bed Semi Trailer Material Detail.


    TRUCKMAN AUTO 4 axle 80 tons low bed semi trailer use the Q355 high strength steel material,

    instead of Q235 carbon steel. The Q355 high strength steel advantage as follow:


    A. The yield strength of Q355 steel can reach 355MPa, while the yield strength of Q235 steel is only 235MPa.


    B. The purchase cost of Q355 steel is 2 times that of Q235 steel, but the bearing capacity and service

    life are 5 times that of Q235 steel.


    C. Q235 is just an ordinary steel plate, not a high strength plate. It is only suitable for some simple

    semi trailer cargo boxes, such as the fuel tank trailer tank body. For flatbed trailer cargo box,

    we suggest use the Q355 high strength steel.



    Q235 Carbon Steel Q355 High Strength Steel
