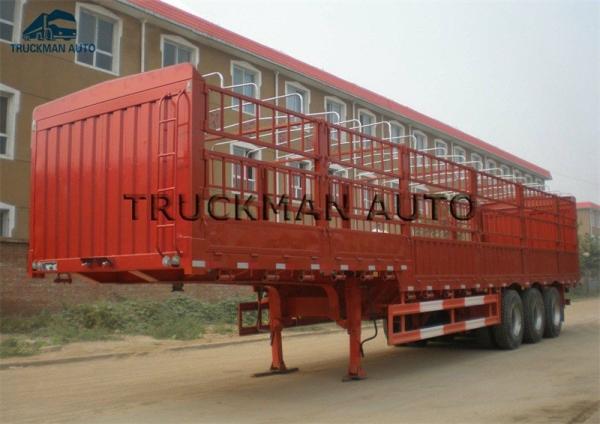

    Heavy duty 60 Tons Fence Semi Trailer ABS System For Bulk Cargo Transport

    60 Tons Bulk Cargo Transport Fence Semi Trailer With The ABS System


    1. Main Specification For Fence Semi Trailer.


    -. The series grid positions semitrailer frame is a beam-penetrating type structure , the longitudinal beam

    adopts flat straight type or goose neck type;


    -. It is penetrated to the longitudinal beam and welded integrally.


    -. It can transfer the force and torsion between the wheel and the frame, and to buffer the impact force from

    uneven road surface to the frame or body, and attenuate the vibration caused by it, so as to ensure that the

    trailer can run smoothly.


    DIMENSIONS
    Tare Weight10000kg
    Payload60000kg
    Specification12000, 12500,13000*2500,2550*3350,3550,3750,3950mm(L*W*H)
    Wheelbase6380mm+1310mm+1310mm
    SPECIFICATION
    Main FrameHeavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
    500mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm
    Side wall height1000mmChosed+500mmMesh
    FloorSteel Sheet 3mm thickness
    Axle3 pcs, FUWA , BPW Brand
    SuspensionMechanical/Air/Leaf Spring Suspension
    Leaf SpringSix sets of reliable local brand, 8-piece leaf spring,16x90mm
    King PinJOST 50# or 90# traction pin
    Landing Gear28T
    Tire12.00R20, 315/80R22.5, 12R22.5
    Rim9.00-22.5/8.00-20/8.5-20
    Twist Lock12pcs
    Spare Wheel CarrierOne set of spare wheel carrier including a riser.
    Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
    Electrical System1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
    PaintingPrimer+top coat
    Tool BoxOne piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

    Heavy duty 60 Tons Fence Semi Trailer ABS System For Bulk Cargo Transport


    Heavy duty 60 Tons Fence Semi Trailer ABS System For Bulk Cargo Transport


    -2. Other Product.



    3 Axles Side Wall Cargo Semi Trailer



    Container Flatbed Semi Trailer.
